Material:High-grade FR-4
Operating Voltage:Up to 400V DC
Operating Current:18A peak
Insulation Resistance:≥ 10MΩ
Operating Temperature Range:-40°C to +85°C
Input/Output Connections:12-pin DIP socket
Dimension:120mm x 75mm
Weight:0.15kg

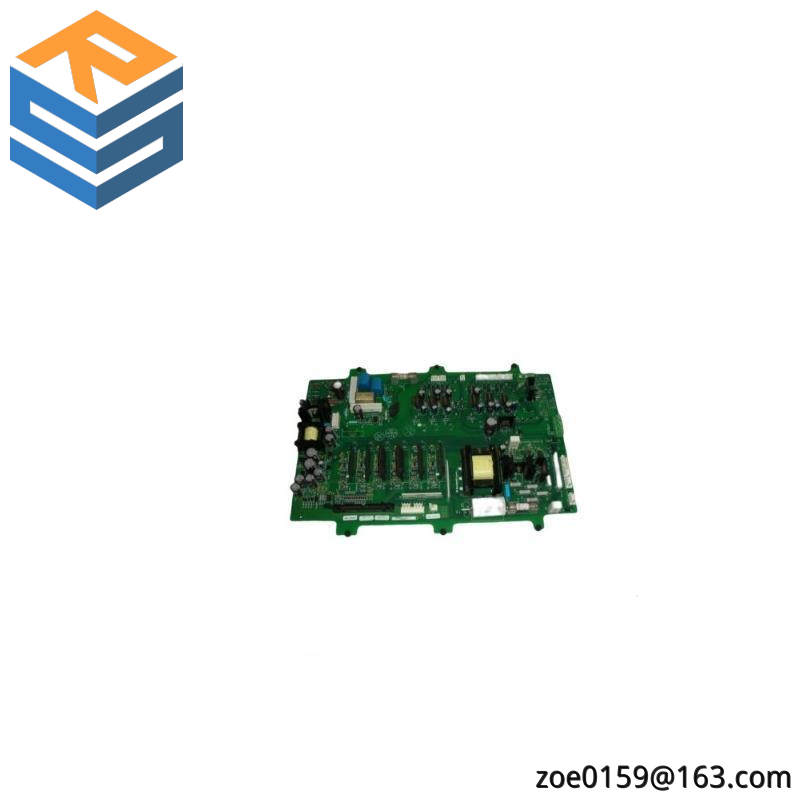

The AB 1336-BDB-SP18D PCB module is specifically engineered for applications requiring robust gate drive performance in challenging environments. Its advanced semiconductor technology ensures long-lasting reliability and efficiency.
This module supports a wide operating temperature range from -40°C to +85°C, making it suitable for various industrial settings. It can handle input voltages from 10V to 40V DC, providing versatility in different power supply scenarios.
With a continuous output current of 10A and peak current capacity of 20A, the 1336-BDB-SP18D is capable of driving high-power devices with precision. Its high switching frequency of up to 20 kHz enables fast response times, enhancing system performance.
Equipped with superior insulation resistance, the module ensures safe operation and minimizes the risk of electrical interference. This feature is crucial for maintaining system integrity and preventing unexpected failures.
Designed with ease of integration in mind, the AB 1336-BDB-SP18D PCB module is compatible with a broad range of industrial automation systems. Its compact size and standardized pinout facilitate seamless installation and configuration.
